Details

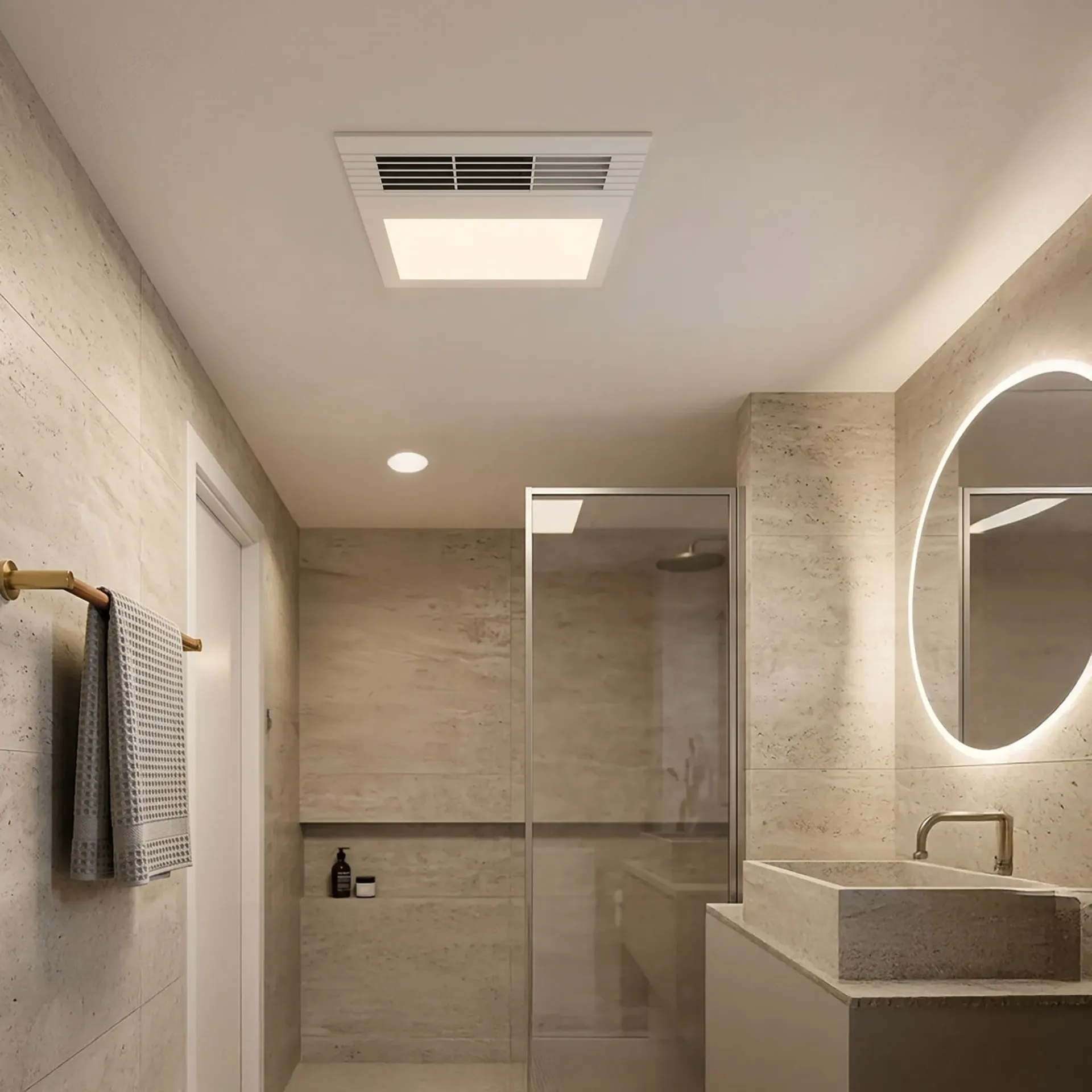

Bring premium comfort to smaller bathrooms with the Vencha Extract Prime Mini EC 4in1 Bathroom Heater, Fan, Light and Exhaust. Compact in size yet impressive in performance, this all-in-one unit combines 2000W PTC heating, a cooling fan, powerful exhaust and a bright 12W LED light to keep your bathroom warm, fresh and beautifully illuminated.
Its advanced EC motor is designed for efficient, quiet and low-maintenance operation, while the 350m³/h airflow helps clear steam and moisture with ease. With selectable 3CCT lighting in warm white, cool white and day light, an IPX4 rating and a 5 year warranty with 2 year in-home support, the Extract Prime Mini EC 4in1 delivers comfort, convenience and premium performance in a sleek, space-conscious design.
Important Note: When the exhaust function is switched on, it will override the heat function for safe and efficient operation.
Additional Features:
- Built-in Thermal Protection System
- Built-in 120 second Exhaust Run-On Timer
- Built-in 20 second Automatic Heat Cool Down Cycle
- Built-in 45-minute Safety Heat Shut-Off
- Backflow Prevention Shutter
| Code | 5501024 |

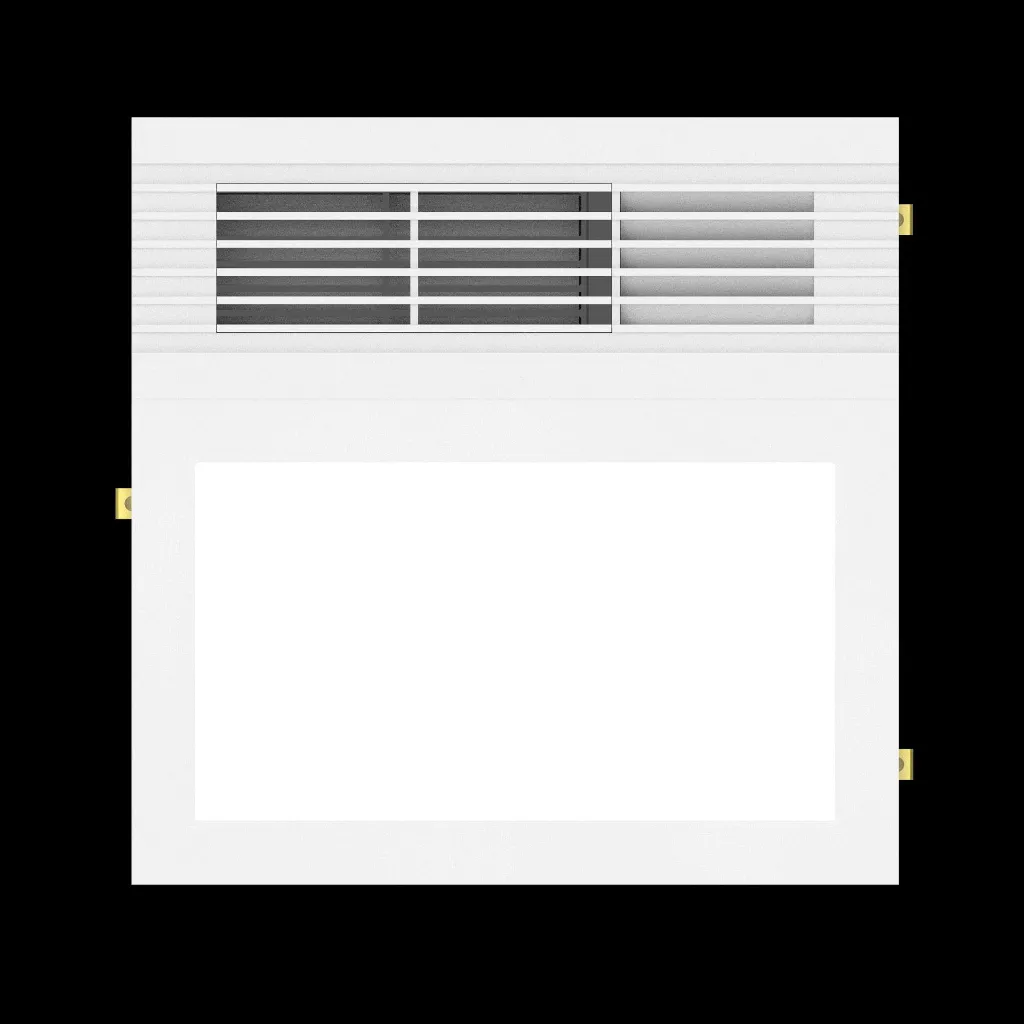

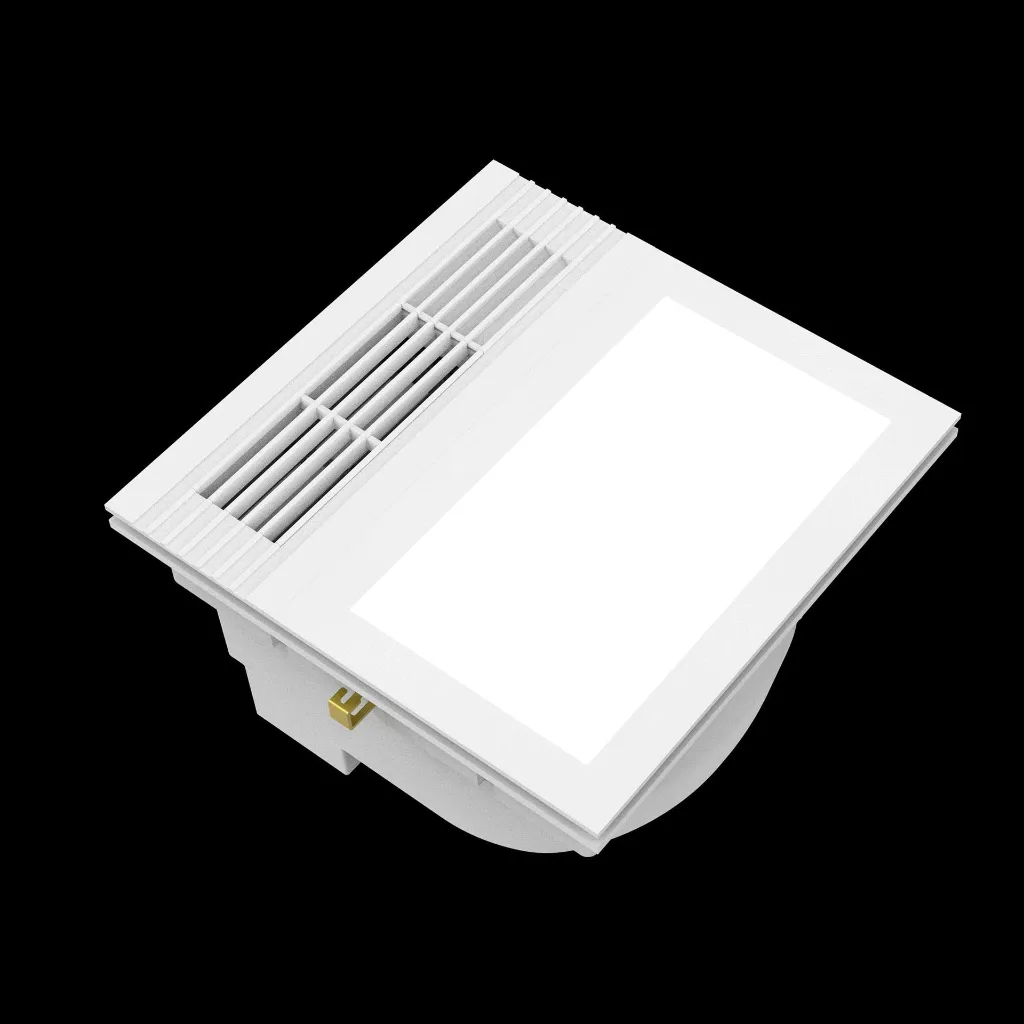

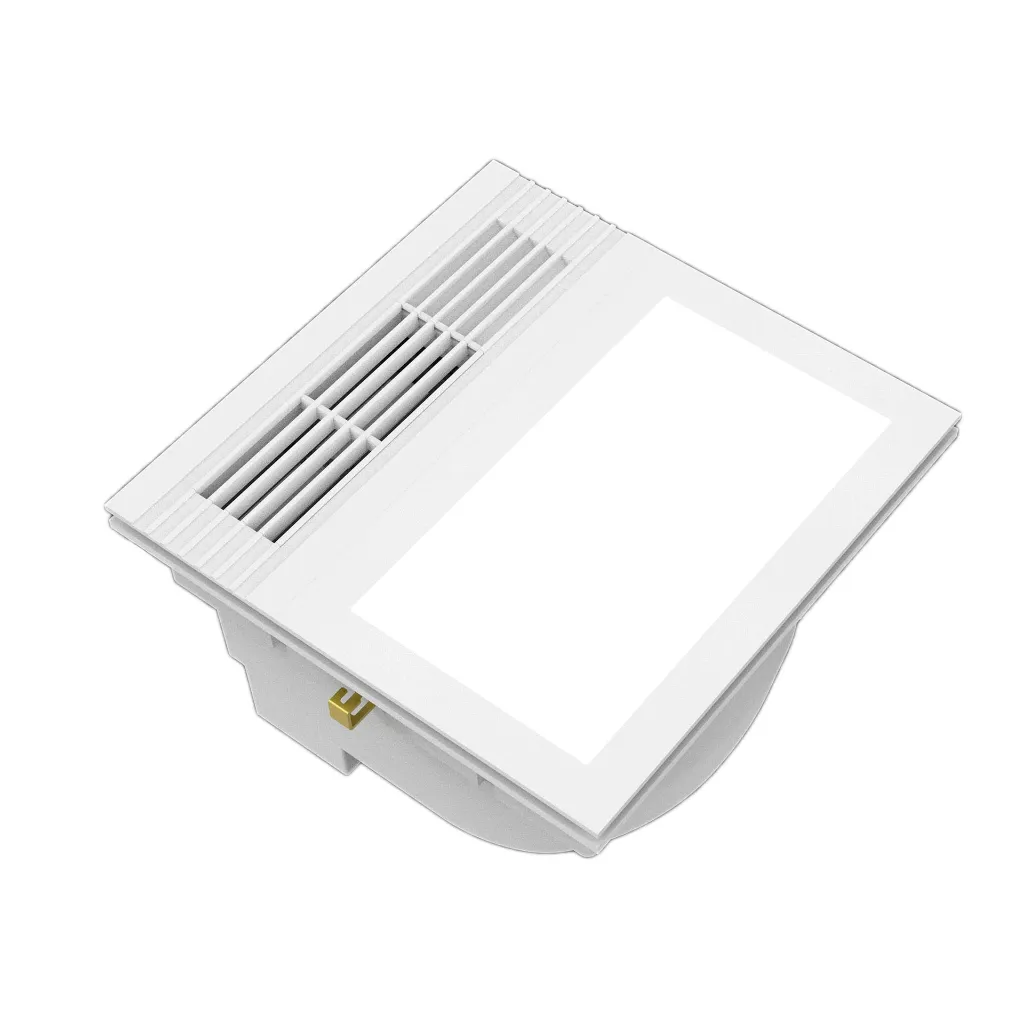

| Model | Extract Prime Mini EC 4in1 Bathroom Heater |
| Colour | White |
| Material Body | Polypropylene (PP) Housing |
| Material Face | PC |
| Voltage | 240v |
| Motor | EC Motor |
| Exhaust Fan | 20w |
| Airflow | 350m3/h |
| Cooling Fan | 20w |
| PTC Heating | 2000w |
| Light | 12w LED |
| Light Colour | 3CCT Selectable (3000K/4000K/5000K) |
| Output | 900/1000/950lm |
| Dimmable | Non Dimmable |
| IP Rating | IPX4 |
| Cut Out | 275mm x 275mm |

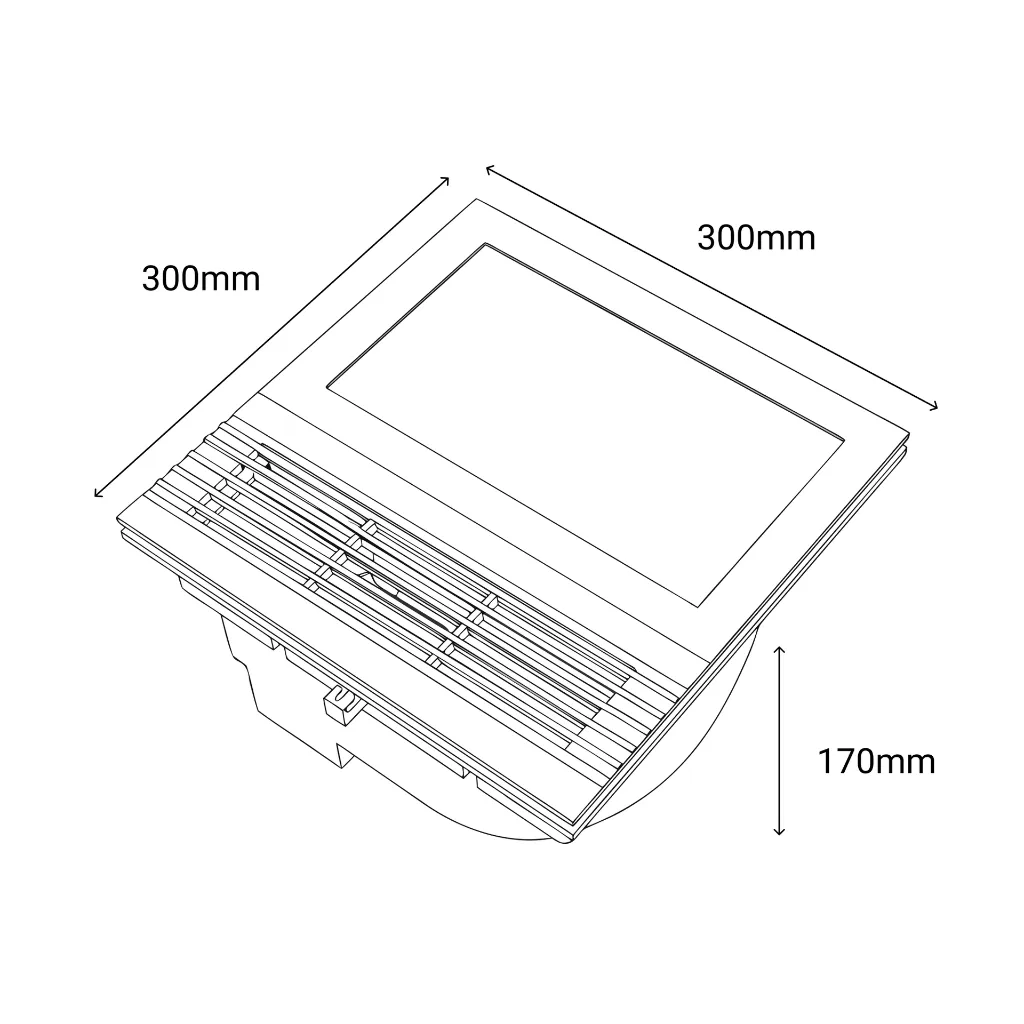

| Face Size | 300mm x 300mm |
| Depth | 170mm (*195mm Min Install Depth) |
| Duct Size | 100mm |
| Warranty | 5 Year (2 Year "In-Home" Warranty) |
| Parts Supplied: | 1 x 4 Gang Wall Switch 1 x 3m Aluminium Duct 1 x External Grille 1 x Cut Out Template 1 x Backflow Prevention Shutter |
| Safety | Built-in Thermal Protection System |
| Colour | WHITE |
